If you have an Orangutan or 3pi Robot or wish to use the Pololu AVR C/C++ Library for some other reason, we recommend following the Pololu AVR Programming Quick Start Guide instead of this tutorial.

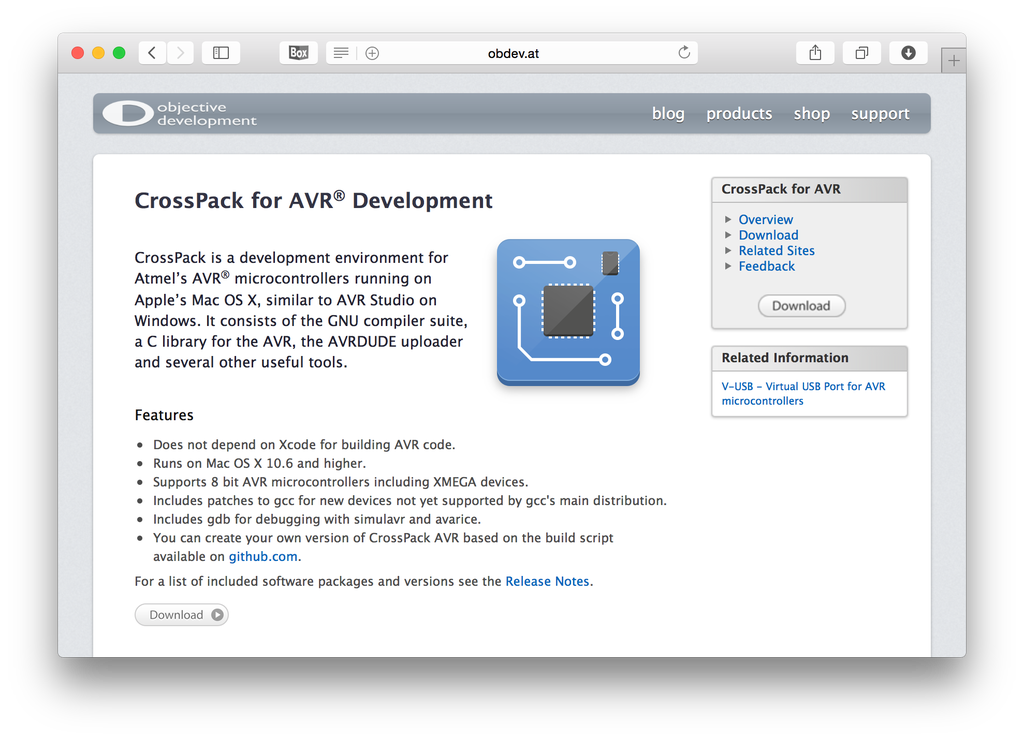

• To program AVRs in Mac OS X, you will need the free avr-gcc compiler, avr-libc, AVRDUDE, and other associated tools. Download the CrossPack for AVR Development, which is packaged as a.dmg file. Open the.dmg file, and double-click on CrossPack-AVR.pkg.
• Avrdude-6.1.tar.gz free download. Swiss File Knife Create zip files, extract zip files, replace text in files, search in files using expressions, strea. Fully portable, for USB stick, without installation. For Windows, Linux and Mac OS/X. Downloads: 735 This Week Last Update: 2020-05-23 See Project. The JUMP Pilot Project.

Installing CrossPack

To program AVRs in Mac OS X, you will need the free avr-gcc compiler, avr-libc, AVRDUDE, and other associated tools.

1. Download the CrossPack for AVR Development, which is packaged as a .dmg file.
2. Open the .dmg file, and double-click on CrossPack-AVR.pkg. This package will create a sub-directory called CrossPack-AVR-<version-date> on your hard drive (probably under /usr/local), along with a version-neutral symbolic link CrossPack-AVR referencing the same sub-directory. It will also add an entry to the PATH environment variable referencing CrossPack-AVR/bin.
3. Programs for the AVR can now be compiled at the command line using the avr-gcc C compilers and the avr-as assembler. For detailed instructions, see the CrossPack development manual, which is installed in the CrossPack-AVR directory along with the tools.

Using AVRDUDE

Once an AVR program has been compiled to a .hex file, it is ready to be flashed to the AVR. The AVRDUDE program (which was installed as part of the CrossPack package) may be used for this purpose.

To see the full command-line syntax for AVRDUDE, type avrdude --help at the command line, or consult the AVRDUDE documentation. Typical usage would be as follows:

avrdude -p <partno> -c avrisp2 -P <port> -U flash:w:<filename>.hex

For example:

If all goes well, the output should look something like this:

Related products

About the App

Avrdude For Mac Os X 10.13

• App name: avrdude
• App description: Atmel AVR MCU programmer
• App website: Not Available

Install the App

1. Press Command+Space and type Terminal and press enter/return key.
2. Run in Terminal app:
   ruby -e '$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)' < /dev/null 2> /dev/null
   and press enter/return key.
   If the screen prompts you to enter a password, please enter your Mac's user password to continue. When you type the password, it won't be displayed on screen, but the system would accept it. So just type your password and press ENTER/RETURN key. Then wait for the command to finish.
3. Run:
   brew install avrdude

Avrdude For Mac Os X 10.10

Done! You can now use avrdude.
